Team PRP TLT-1 Conversion kit
SWAY BAR MOUNTS

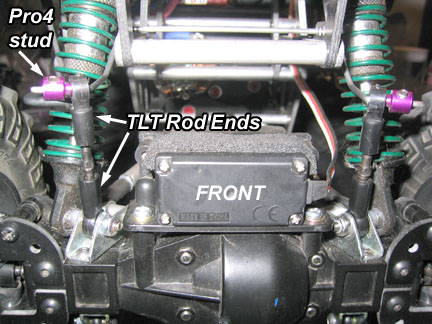

(sway bar mounting requires some custom work and additional rod ends and ball studs...
HPI, AE, Losi, Tamiya, etc all make sway bar mount ball studs. Photos below show HPI ball studs)

The sway bar mounting plates are interchangeable front to rear and you can attach each mount in 4 variations to accomodate your truck's setup. The sway bar mounting plates can be placed with the sway bar holes above the frame rail (as shown in photos 1 through 3), below the frame rail, toward the front of the truck, or toward the rear of the truck. Fidning the correct mounting method depends on your suspension set up (shock attachment point, shock length and wheel base). You may also need to adjsut the length of your threaded rod to accomodate your setup.

The sway bar mounting plates have 4 holes on each plate for mounting the sway bar. The two smaller holes are for 1/16" (1.6mm) bars, and the two larger holes are for 3/32" (2.4mm) bars.

To attach the bars: Slide the sway bar into the mounting plates and feed the assembly through the chassis. Both moutning plates are attached to the outside of the frame rails with the countersunk side facing out. Then attach the assembly to the chassis with included hardware. See reference photos below.



FRONT assembly
Your mounting setup may need to be different, only use these photos as a reference

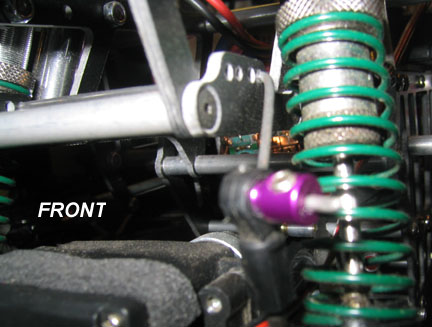

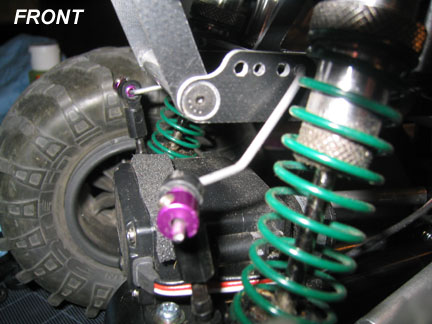

My front setup has the mounting plates above the frame rail and toward the front
of the truck with the sway bar going through the second "small" hole with a 1/16" steel bar.



REAR assembly

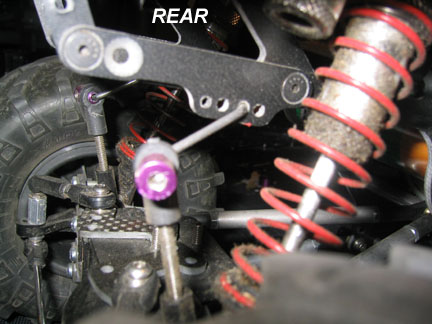

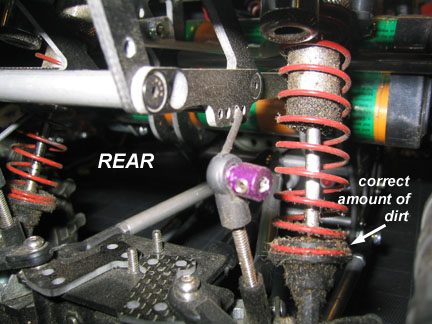

My rear setup has the mounting plates below the frame rail and toward the
front of the truck with the 1/16" bar going through the first small hole.
